Ultra-quiet spindle at a high speed
|
High strength guider for personal design
|
 |
 |

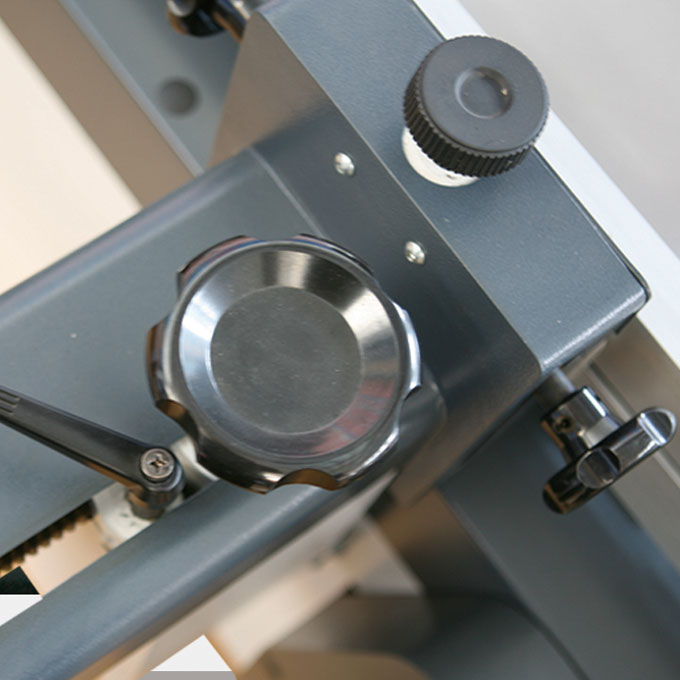

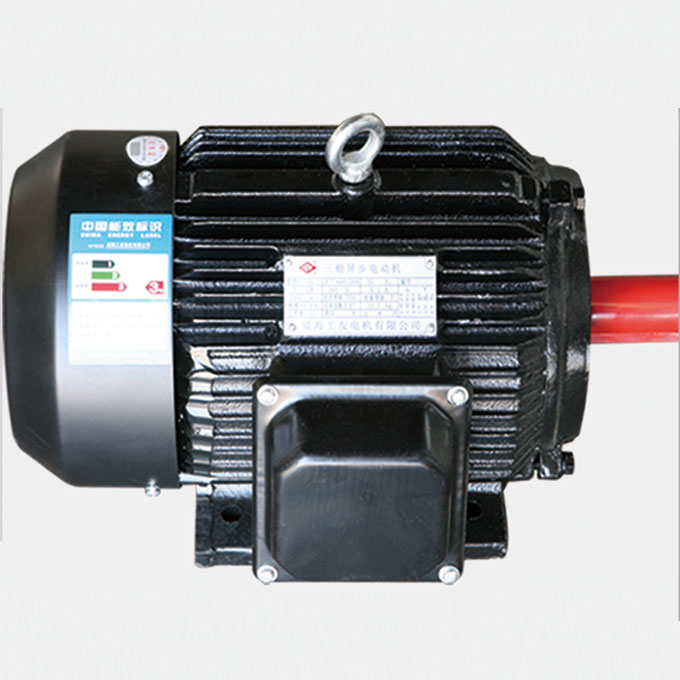

| Adjustment of guider is convenient and reliable | Standard of pure copper wire motor power is strong |

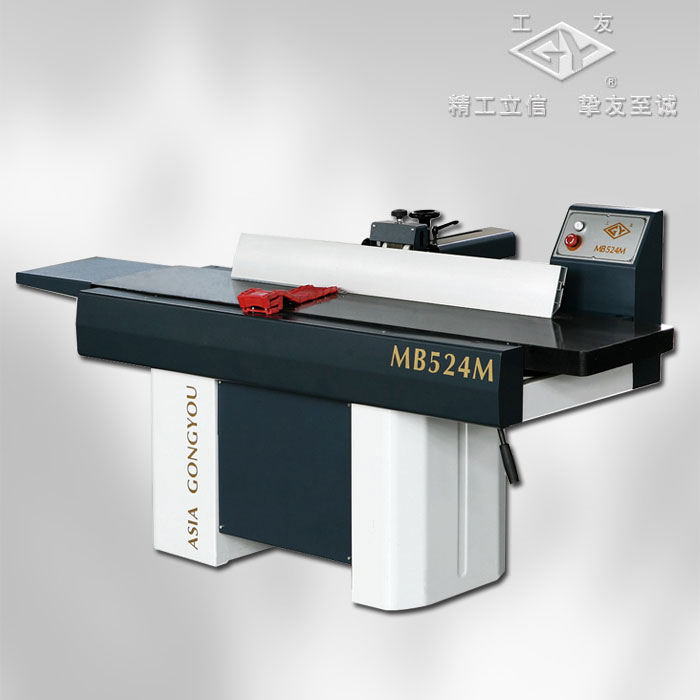

| Technical Specification | Unit | MB523M | MB524M |
| Max. planing width | mm | 300 | 400 |
| Max. planing depth | mm | 4 | 5 |
| Spindle speed | r/min | 5600 | 5000 |
| Blade number | 3 | 4 | |
| Cutting diameter | mm | Ø87 | Ø102 |
| Workbench total length | mm | 1800 | 2000 |
| Motor power | kW | 2.2 | 3 |
| Motor speed | r/min | 2840 | 2880 |
| Overall dimensions | mm | 1809×598×1100 | 2000×790×1100 |
|
Net.weight |
kg | 290 |
391 |
