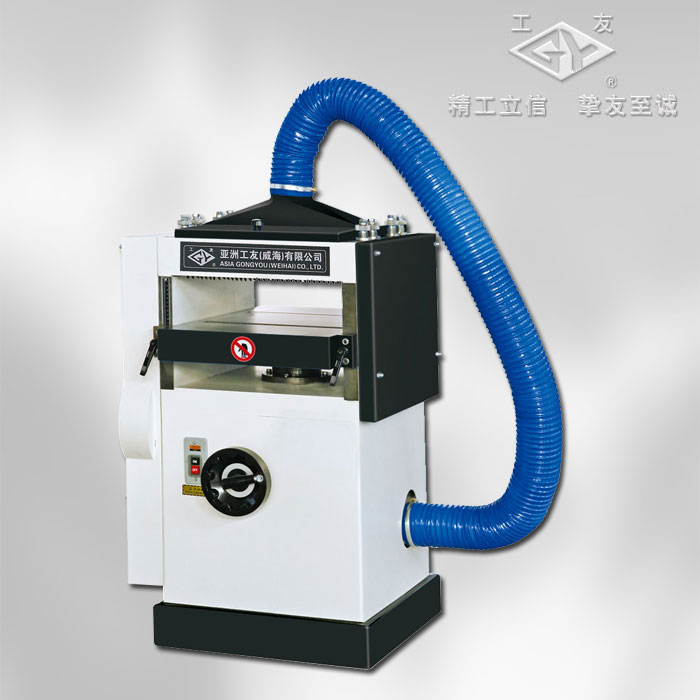

| Technical Specification | Unit | MB103Z | MB104Z |
| Max. planing width | mm | 300 | 400 |
| Max. planing thickness | mm | 130 | 130 |
| Min. planing thickness | mm | 5 | 5 |
| Max. planing depth | mm | 3 | 3 |
| Min. planing length | mm | 180 | 180 |
| Main spindle speed | r/min | 10000 | 7000 |
| Feeding speed | m/min | 7.8,10 | 7.8,10 |
| Motor power | kW | 2.2（option3） | 4 |
| Overall dimensions | mm | 715×500×1046 | 750×500×995 |
|
Net.weight |
kg |
206 |
280 |
